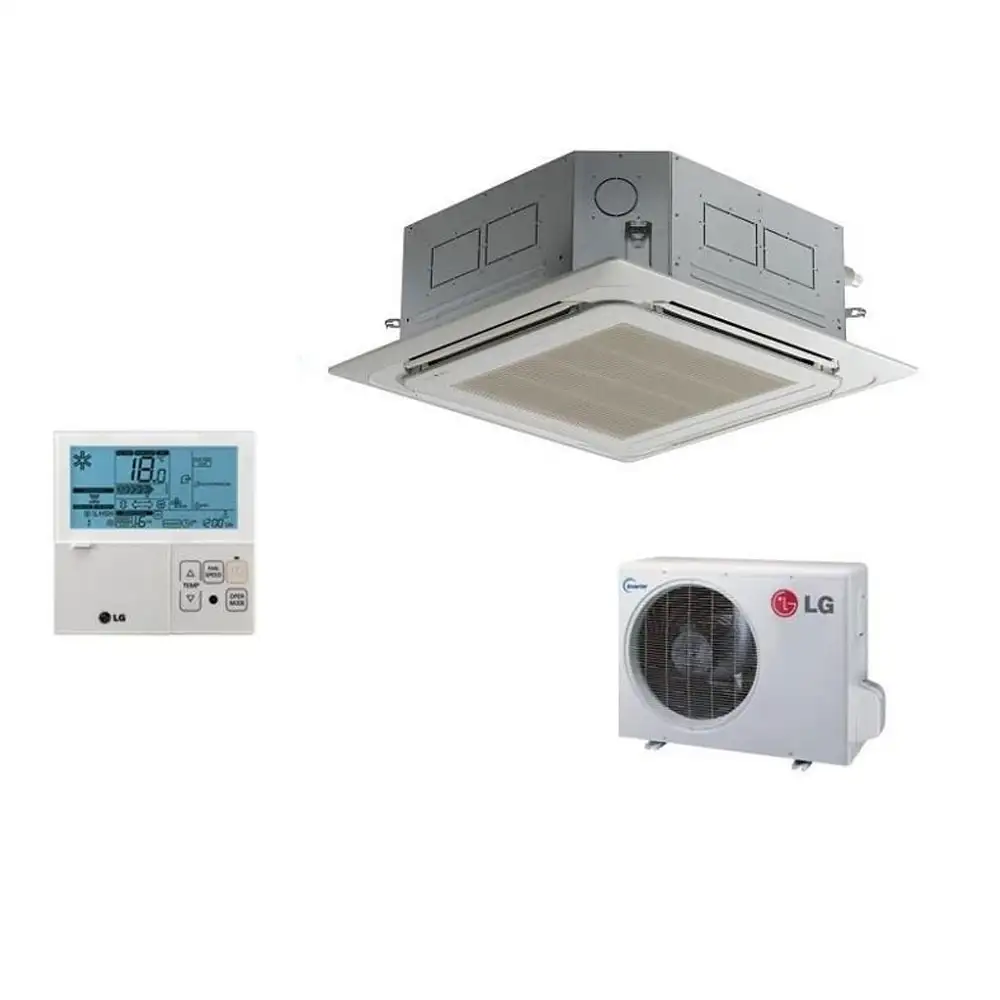

LG Air Conditioner Cassette CT12 + UU12W
| Model Indoor Unit |
CT12.NR2 |
|
|
| Fascia Panel |
PT-UQC |
|
|
| Cooling Capacity Min~Rated~Max kW |
1.4 ~ 3.4 ~ 3.7 |
| Heating Capacity Min~Rated~Max kW |
1.60 ~ 4.0 ~ 4.40 |
| Nom. Input power Cooling kW |
1.06 |
| Heating kW |
1.1 |
| Running Current Cooling / Heating A |
4.61 / 4.78 |
| Starting Current Cooling / Heating A |
< 5.0 |
| EER w/w |
3.21 |
| COP w/w |
3.64 |
| SEER |
5.61 |
| SCOP |
3.91 |
| PdesignH (@-10°C) kW |
3 |
| Energy Label Cooling/Heating W |
A+ / A |
| Annual Energy Consumption Cooling/Heating kWh |
213/1,077 |
| Power Supply Ø/V/Hz |
1 / 220~240 / 50 |
| Nominal Running Current A |
0.4 |
| Fan Motor Type |
BLDC |
| Air Flow Rate (H/M/L) |
9.5 / 8.0 / 7.0 |
| Dimensions (WxHxD) Body mm |
570x214x570 |
| Fascia Panel mm |
700x22x700 |
| Net Weight Body kg |
14 |
| Fascia Panel kg |
3 |
| Sound Level (H/M/L) dB(A)+3 |
38 / 35 / 32 |
| Drain Hose (O.D / I.D.) mm |
32 / 25 |
| Refrigerant Type |
R410A |
| Connectable Outdoor Unit |
UU12.ULD / UU12W.ULD |
| Main Power Supply @ |
Outdoor |
| Interconnecting Cable |
3–Core + Earth |
|
|
| Model Outdoor Unit |
UU12W.ULD |
|
|
| Power Supply Ø , v, Hz |
1, 220~240, 50 |
| Dimensions WxHxD mm |
770x540x245 |
| Net Weight Outdoor kg |
32 |
| Compressor (Inverter) Type |
Rotary |
| Quantity |
1 |
| Motor Type |
BLDC |
| Refrigerant Charge (at 7.5m) g (oz) |
1000 |
| Type |
R410A |
| Control |
EEV |
| Air Circulation M³/Min |
32 |
| Sound Pressure Cooling /Heating dB(A)+3 |
47 / 48 |
| Piping connections Liquid mm (inch) |
6.35 (1/4) |
| Gas mm (inch) |
9.52 (3/8) |
| Max. Piping Length / Elevation m |
15 / 10 |
| Additional Refrigerant Charge (>7.5m) g/m |
20 |
| Recommended Fuse A |
10 |
